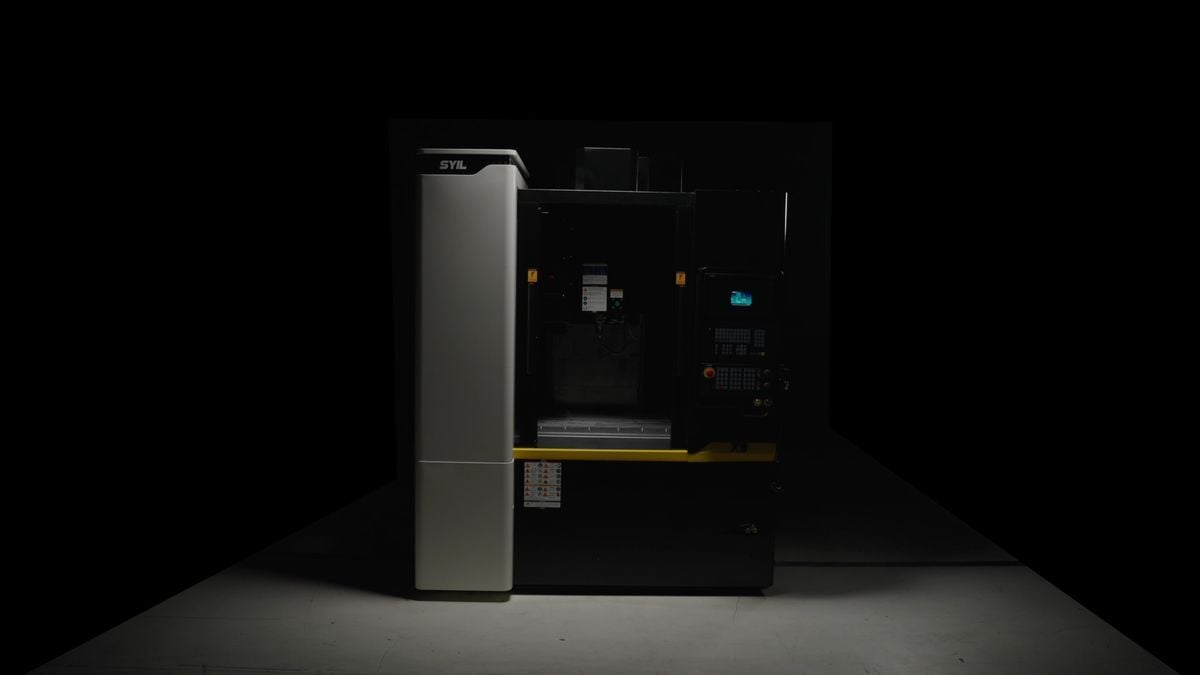

• SYIL X9 Vertical Mill

    SYIL X9 Vertical Mill

    First-Class Components and Solid Construction

    760×500×500 mm axis travels

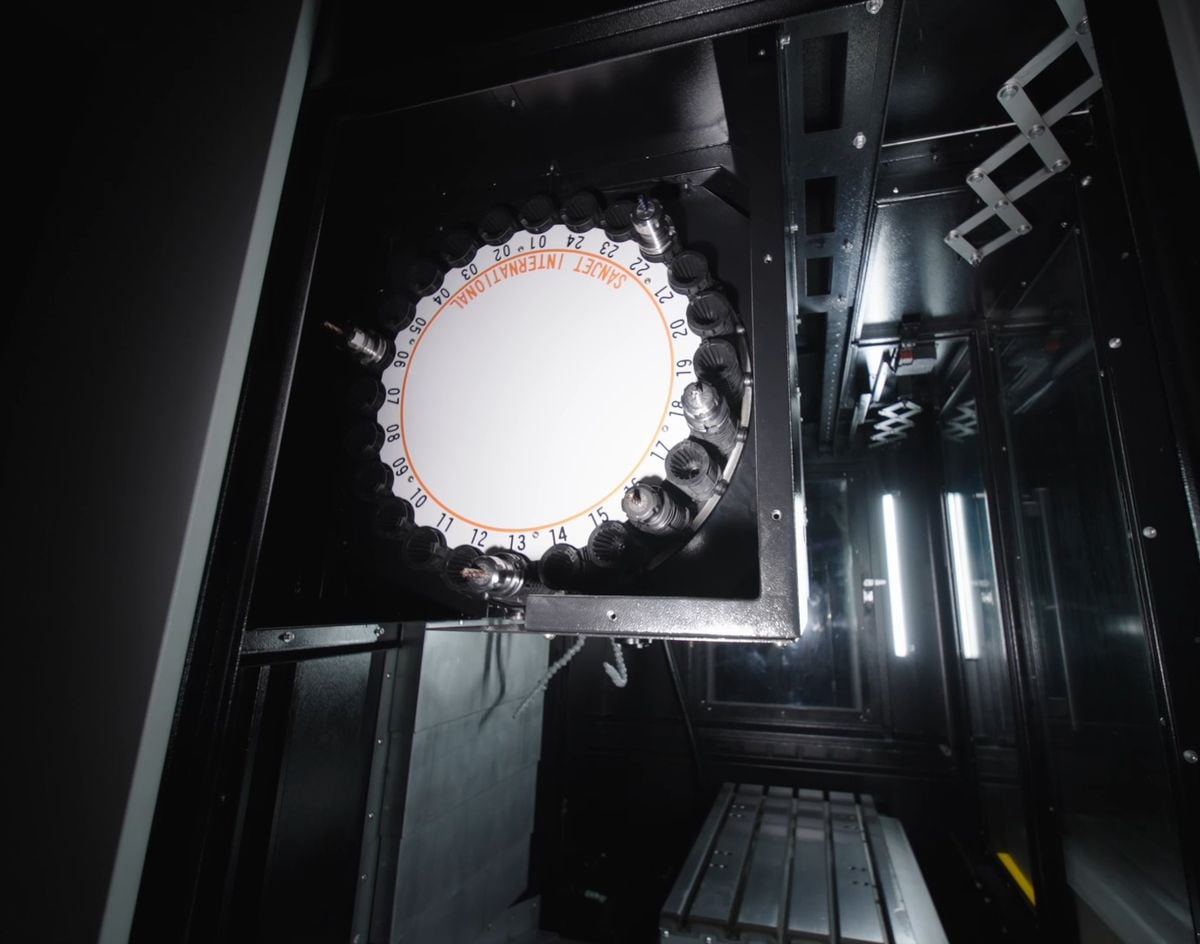

    24-unit high-speed servo tool changer

    10,000 rpm BT40 spindle

    SCHNEEBERGER mineral casting

    Siemens SINUMERIK 828D 15" controller



    From USD 39,990*

    (*excludes shipping & duties)

  • SYIL X9 Technical Data

    First-Class Components and Solid Construction

    Machine Specifications

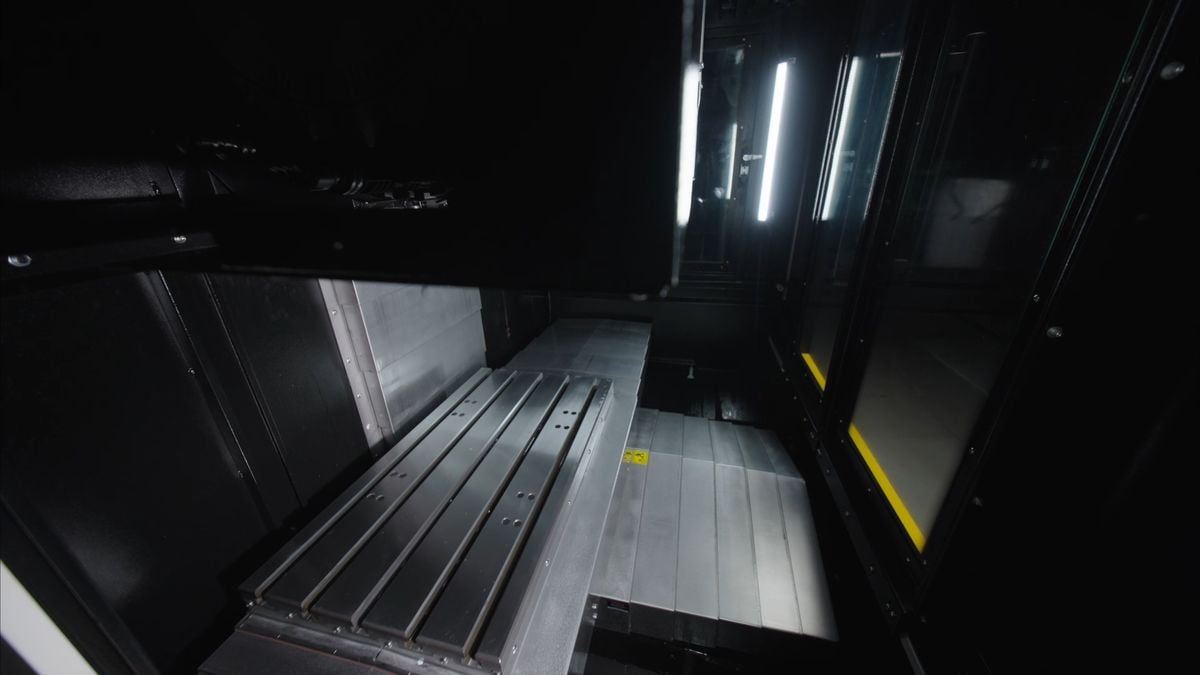

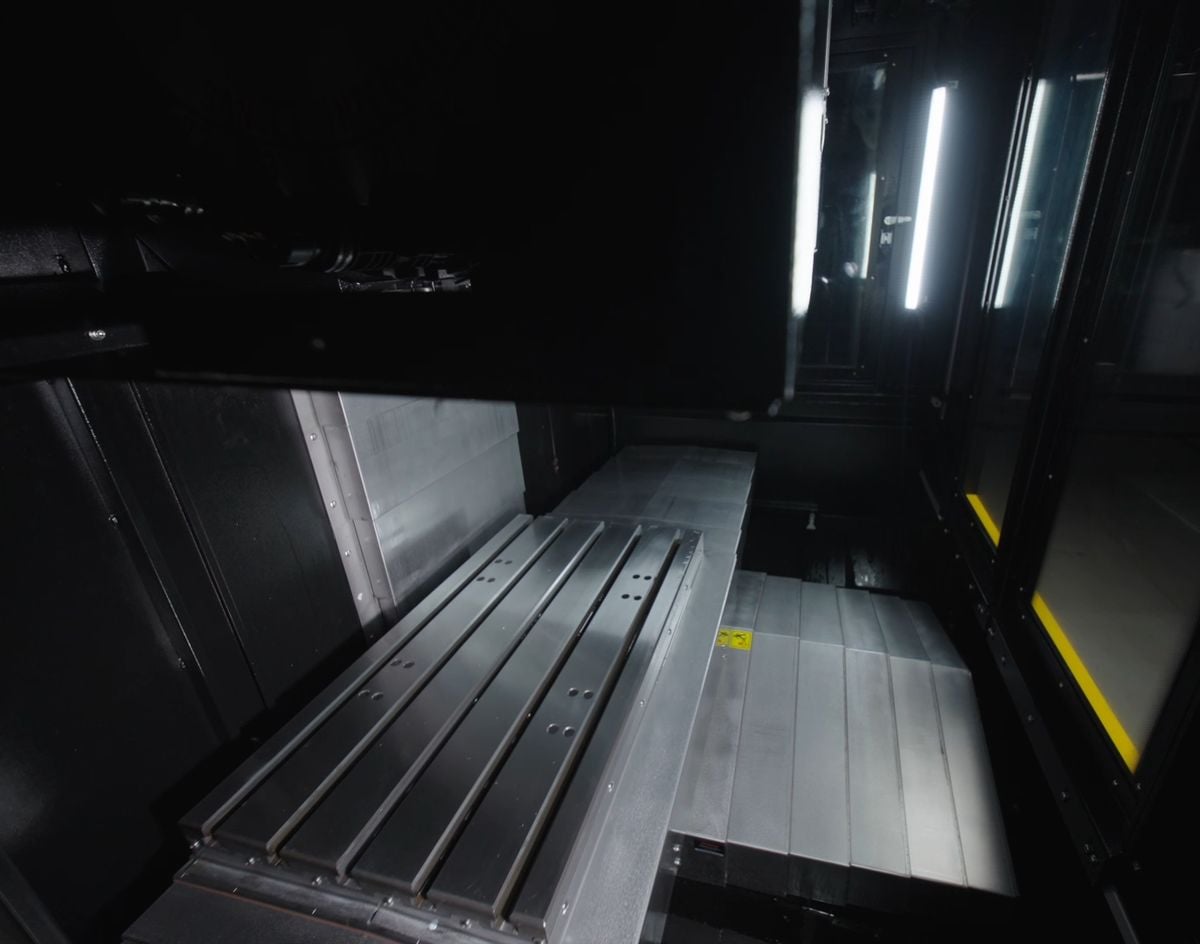

    Table

    Working surface: 860×500 mm

    T-slots (number×size×distance): 18×5×100 mm

    Max. table load: 500 kg

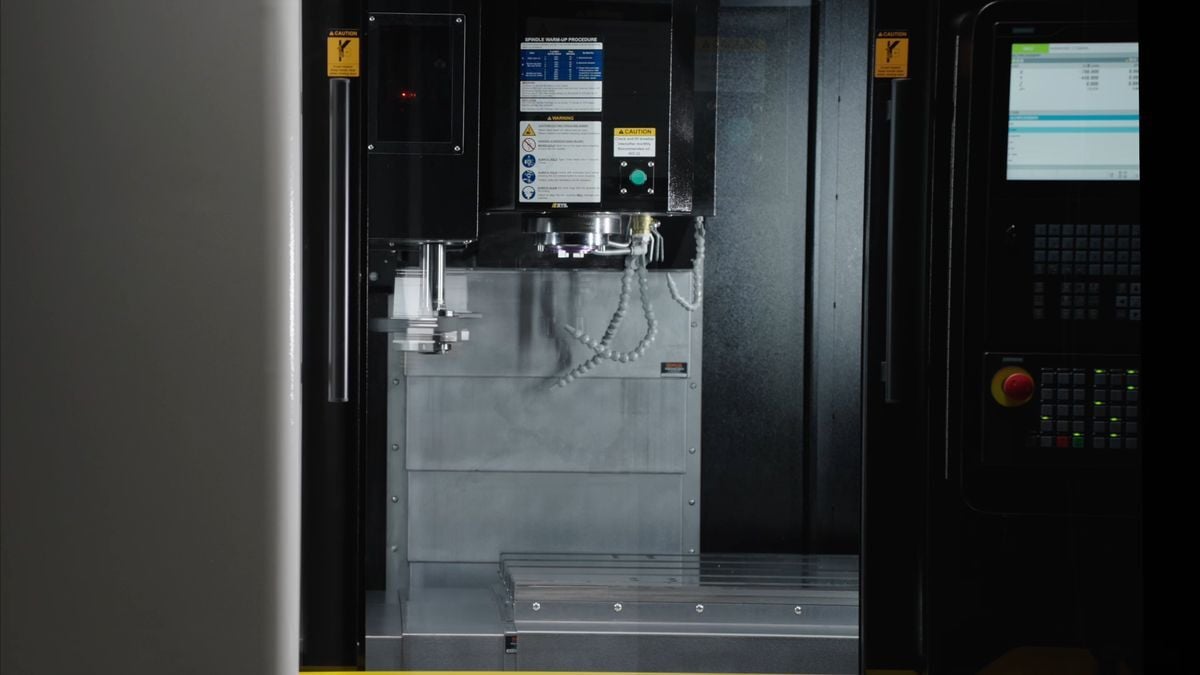

    Travel

    Longitudinal travel X: 760 mm

    Cross travel Y: 500 mm

    Headstock travel Z: 500 mm

    Distance between spindle end and tabletop: 100-600 mm

    Distance between spindle centre and column surface: 530 mm

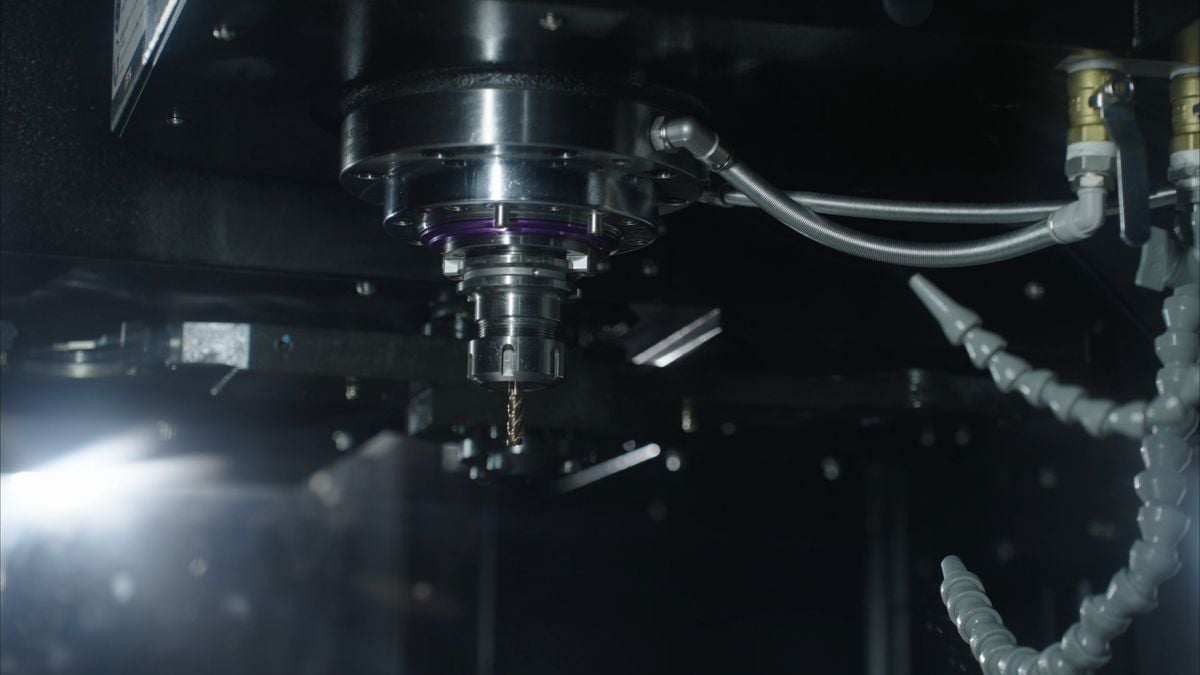

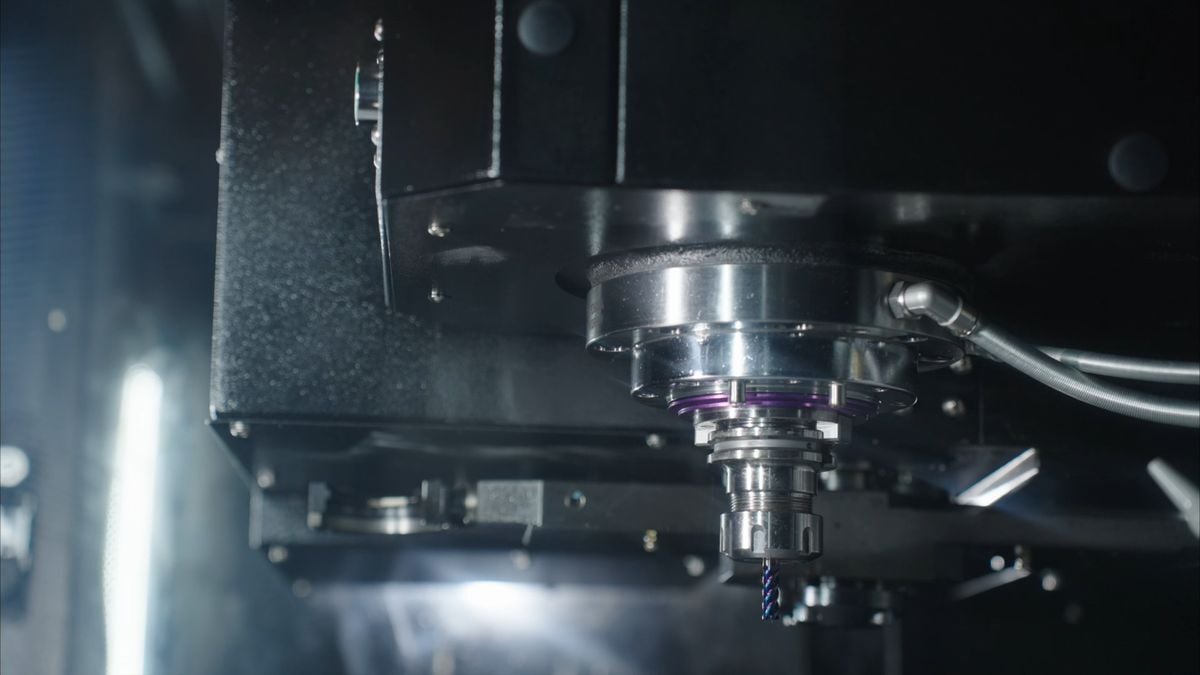

    Spindle

    Spindle nose: BT40

    Spindle speeds: 12,000 rpm

    Mechanism of transmission: Belt/Direct



    Feed

    Cutting feed: 10,000 mm/min

    Rapid traverse: 30,000 mm/min

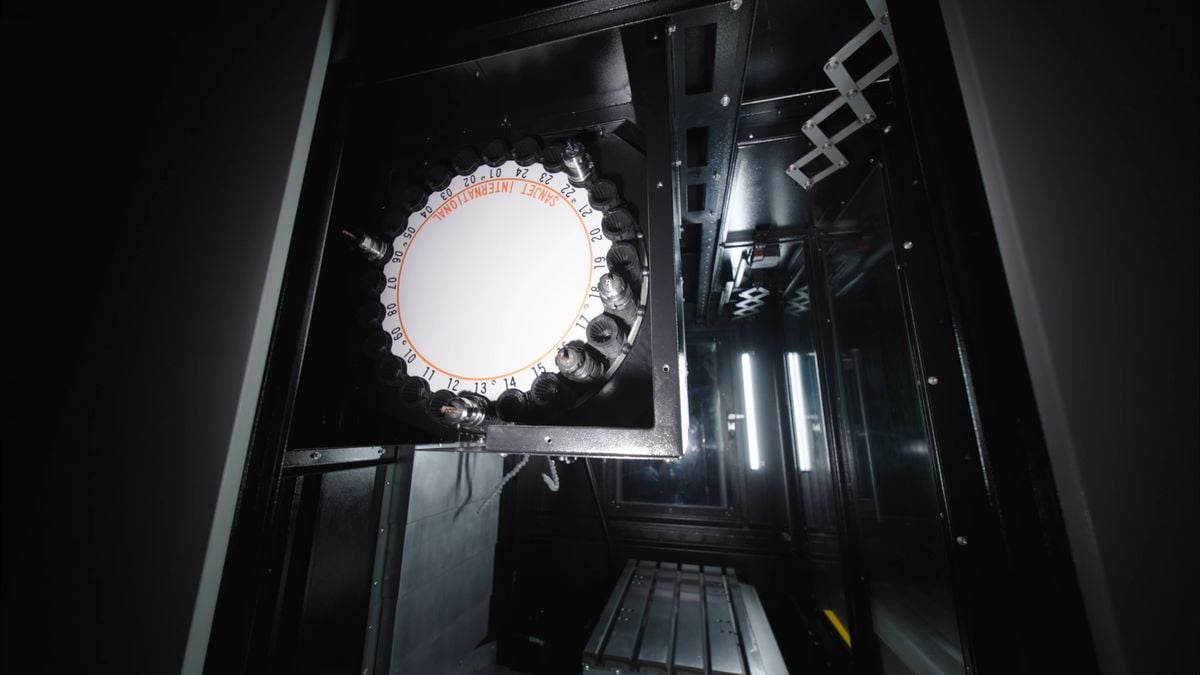

    Auto Tool Changer

    Tool holder: Arm

    Tool storage capacity: 24 positions

    Max. tool diameter: 125 mm

    Max. tool length: 240 mm

    Max. tool weight: 7 kg

    Tool to Tool: 2 s



    Power

    Syntec

    Spindle motor output：11/17 kW

    Drive motors X, Y, Z-Axis: 3.9/3.9/5.9 kW

    Power source: AC380V/ 3-Phase

    Power: 25 kVA



    General

    Floor space (L×W×H): 1850×2245×2800 mm

    Weight: 6000 kg

  • SYIL x Siemens

    The SYIL X9 is equipped with the Siemens SINUMERIK 828D control system as standard. With its unique CNC performance, the SINUMERIK 828D control sets productivity standards when it comes to milling on SYIL machines. With the new SINAMICS drives and SIMOTICS motion control motors, the SINUMERIK 828D is now even more productive. The robust hardware architecture and intelligent control algorithms, together with the high-quality drive and motor technology, ensure maximum dynamics and precision during machining.

  • X9 Vertical Milling Machine

    Excellent Machining Capabilities. Handling a Full Range of Operations.

    X9 Vertical Milling Machine
    X9 Vertical Milling Machine
    X9 Vertical Milling Machine
    X9 Vertical Milling Machine
