X5 Mini CNC Mill

A versatile hobby CNC machine

X5

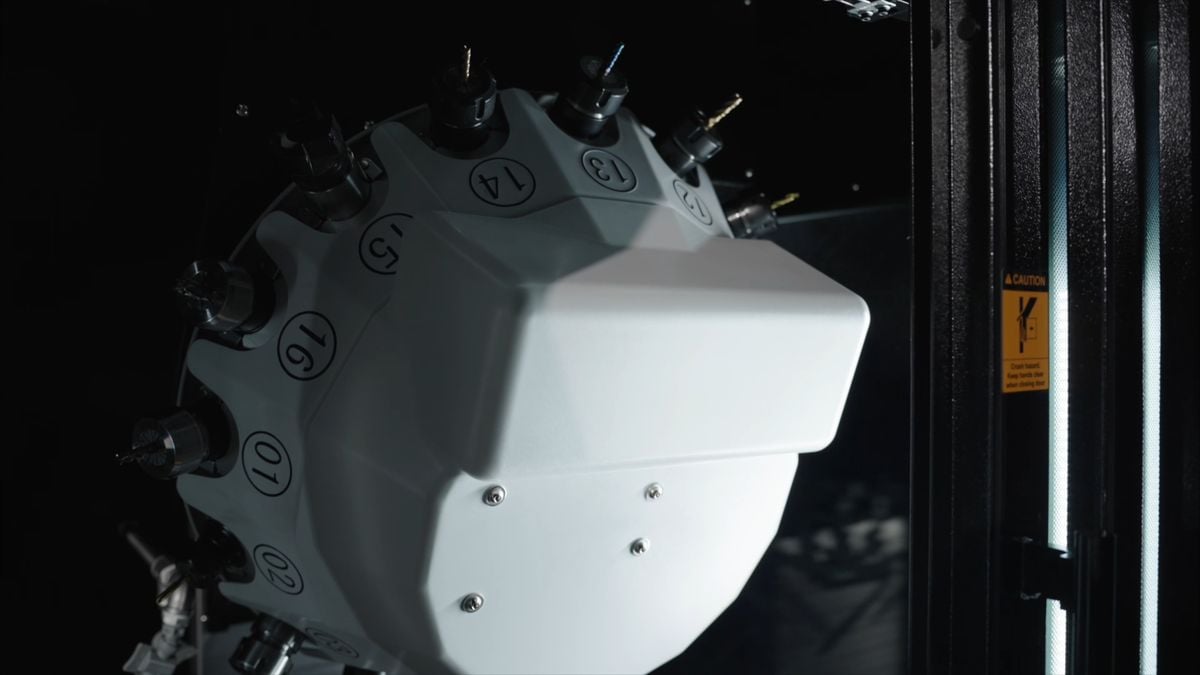

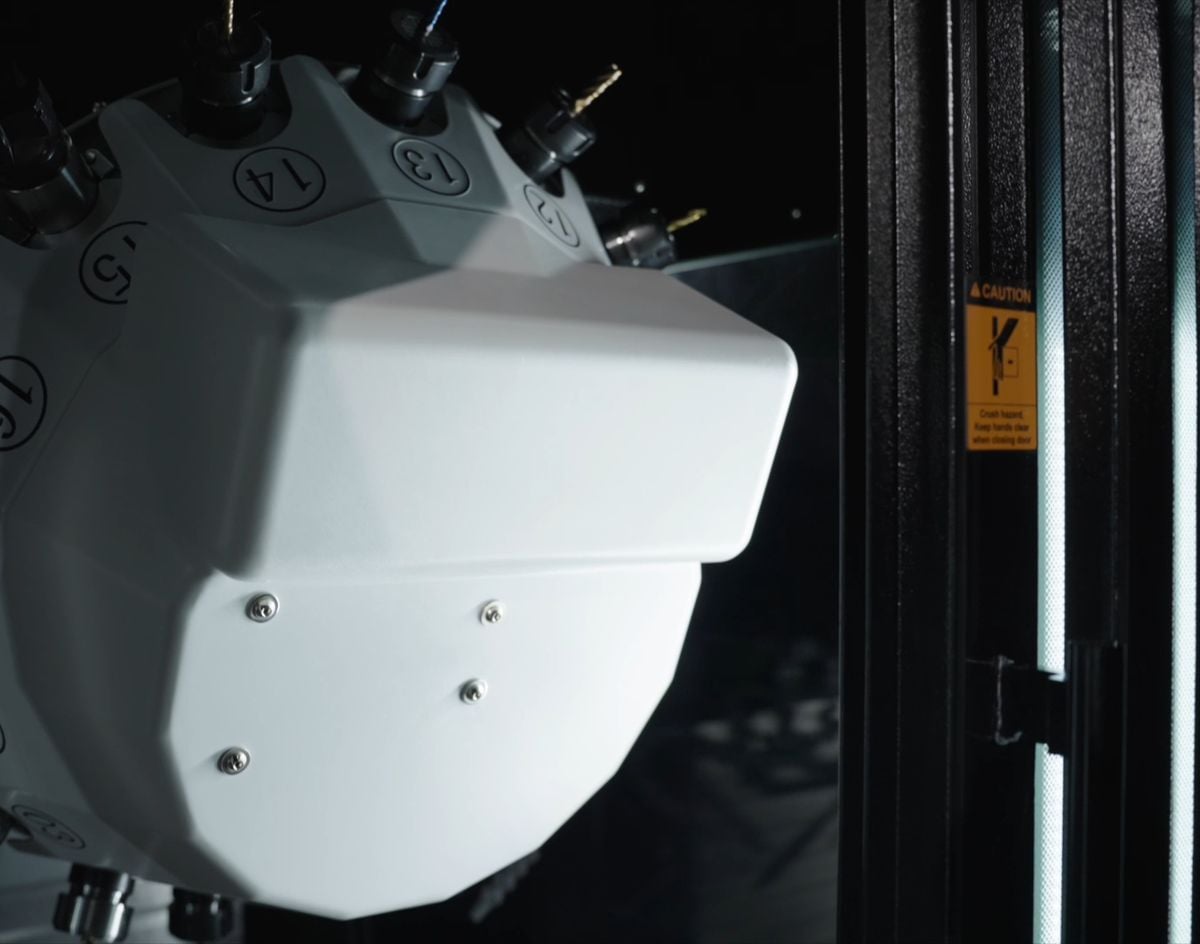

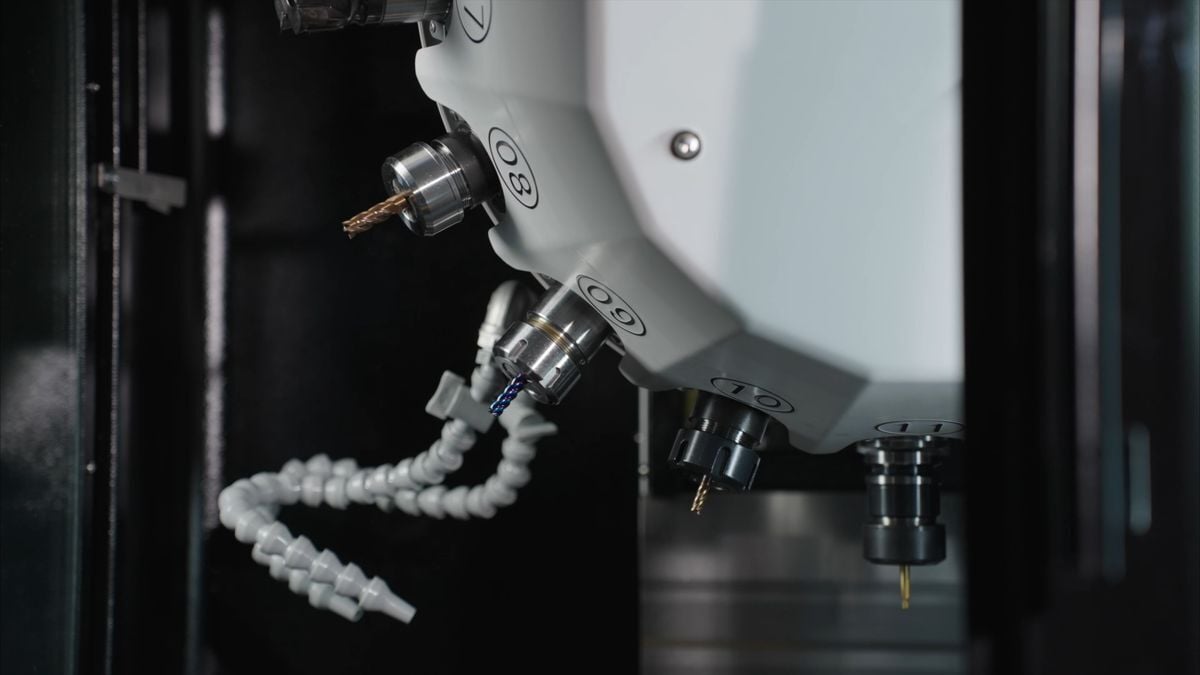

  • Fast airless automatic tool changer

    Lightning-fast 16 tool ATC.

    Register to View Price
  • 10k RPM spindle

    10k PRM spindle as standard.

    Register to View Price
  • Direct drive spindle

    Direct drive spindle as standard.

    Register to View Price
  • Fully protected ways

    Fully protected ways for easy cleaning and long service life.

    Register to View Price
  • Great controllers

    Best value for money controller suites.

    Register to View Price
  • Fast airless 16 ATC

  • 10k RPM spindle

  • Direct drive spindle

  • Fully protected ways

  • Great controllers

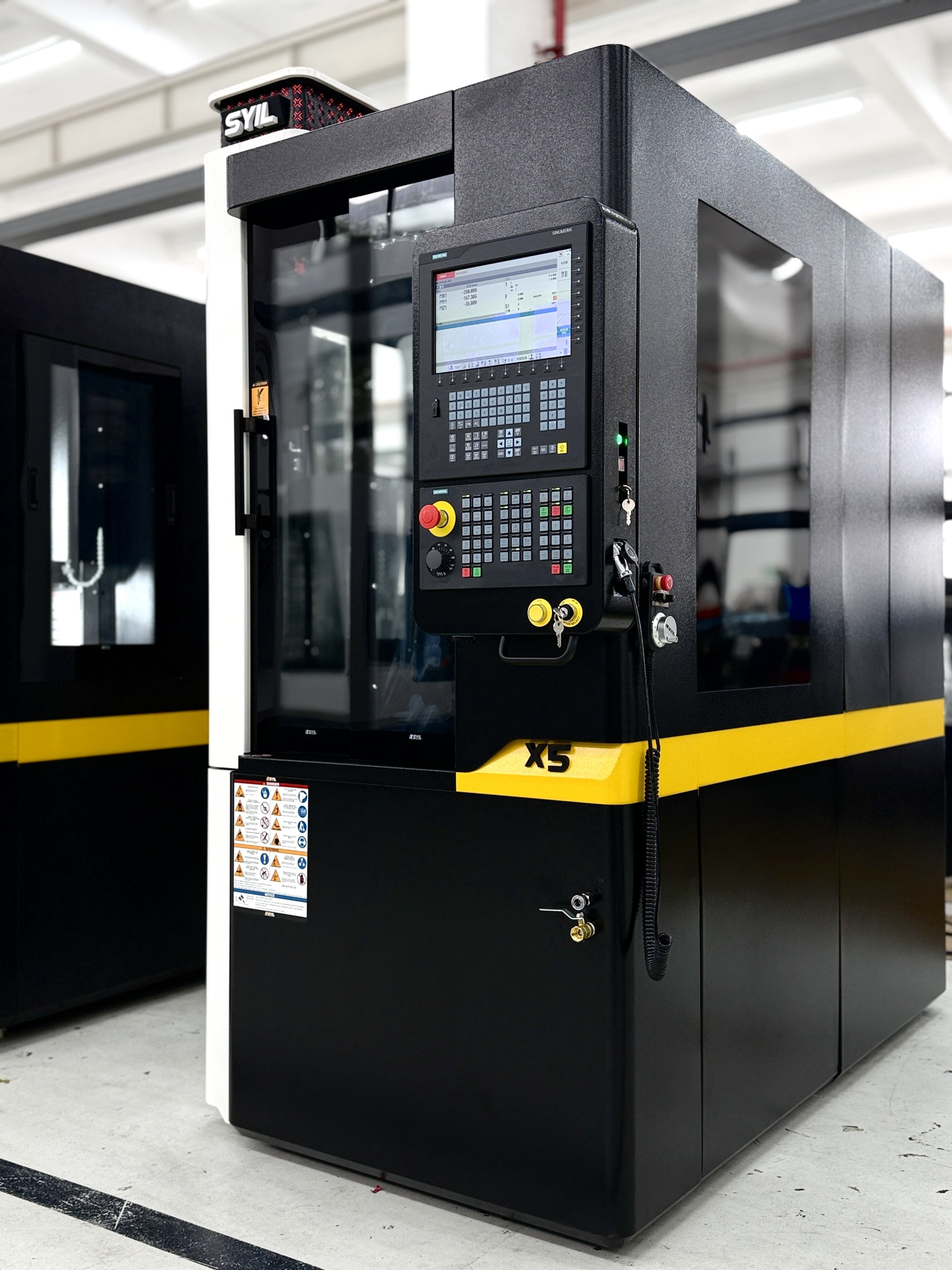

SYIL X5 mini CNC machine

SYIL X5 is the perfect mini CNC machine for your next CNC project. With its compact working area, it is suitable for schools, shops, hobbies, industrial startups, and already established companies. You can also use this as a second machine for small jobs.

hobby cnc machine
syil x5 australia
mini mill australia
hobby cnc milling machine
mini cnc machine australia
syil x5 thk linear guides best mini cnc machine syil x5 mineral casting schneeberger syil x5 automatic tool changer

Made with the best components

The SYIL X5 is manufactured using the best in class components.

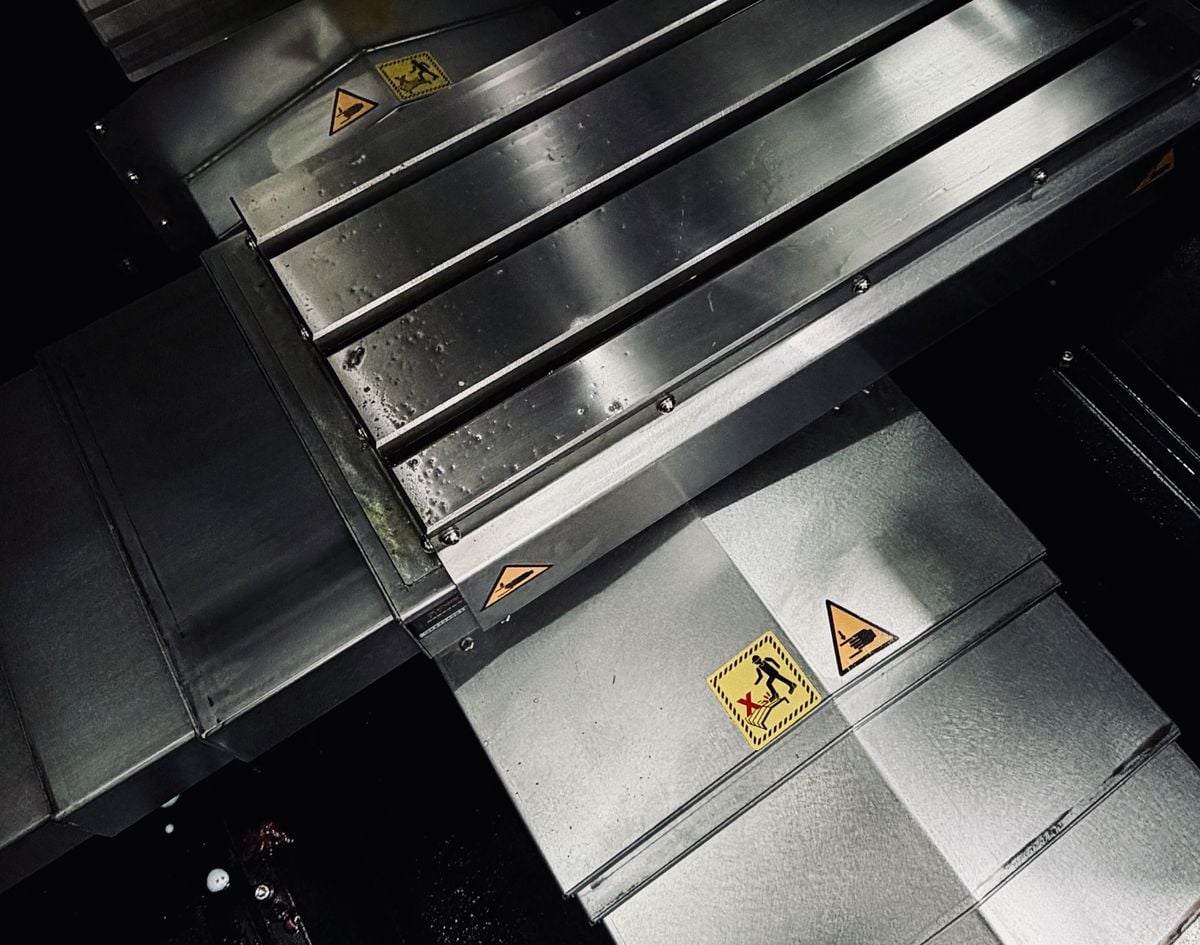

The mineral casting machine frame is made by SCHNEEBERGER. The linear motion guides are made by THK. The brand new SYIL X5 is a powerful mini CNC machine that is quick to set up, easy to operate, very stable, highly dynamic, and requires very little maintenance.

Standard X5 mini-mill features

The SYIL X5 Mini Mill offers an economical solution for machining small parts. One of the big advantages is that the standard machine package is already equipped with full-size features.

Fixed position servo motors

The SYIL X5 mini-mill is fitted with an absolute position servo motor. Therefore, you don't need to spend time positioning things. Just switch on and start homing because our actuators rotate and push all machine parts with high precision.

mini cnc mill servo motors

Standard rigid tapping

We believe that rigid tapping is a standard CNC machine feature. So, you don't need to upgrade your SYIL mini X5 to synchronize the machine spindle rotation and feed with a specific thread pitch.

mini cnc machine rigid tapping

Rapid cooling system

The rapid mini CNC mill's cooling system instantly lowers the machine's temperature.

syil x5 mini cnc mill

Small

Footprint

Full CNC

Capabilities

Affordable

Price

An extremely capable and efficient mini CNC machine

The SYIL X5 mini mill has a small footprint, a complete set of CNC capabilities, and best of all, it's affordable. That makes the X5 CNC milling machines perfect for schools and start-up companies and the easy way to cut aluminum and other materials. You can also use X5 as an entry-level CNC machine.

Boost your productivity levels with the fast-paced X5 mini CNC mill

The Mini X5 CNC milling machine is created from a modular design with numerous configuration options. You can customize the X5 mini to meet each customer's unique needs with all these components.

Thermal accuracy compensation system

SYIL X5 mini has a full-axis Thermal Accuracy Compensation System (S-TAC). It quickly offsets the sensor performance every time the temperature fluctuations seem to impact the machine's milling efficiency.

best hobby cnc machine

Customized tool setting

Select your desired speed with different tool settings on the tool setter.

mini cnc machine australia

Wireless work setting

Alter the mini X5's setting from anywhere and anytime by using the wireless work probe.

syil australia x5

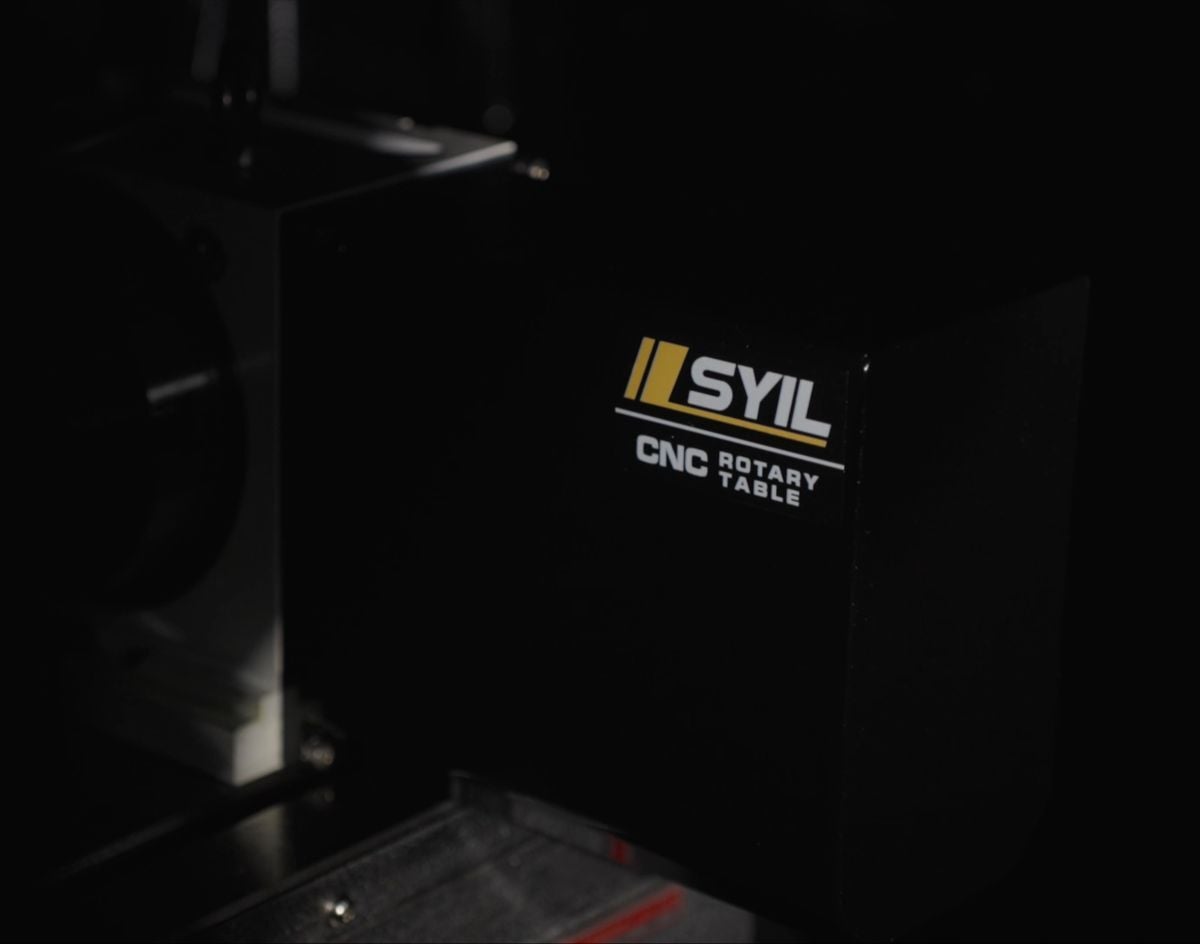

Complete Multiple Axis Work

In the mini X5 CNC machine, you can access four optional rotary axes. These axes are expandable to allow cutting and engraving of different axis and size surfaces, enhancing the machining capabilities of this SYIL milling machine. It also has an internal clamping mechanism that enables multi-sided machining and circular engraving. Moreover, you get the optional high dynamic and precise rotary axis that perfectly matches your SYIL X5 milling machine.

3 Axis

Rendering of table with TTC220

3 axis mini mill

4 Axis

Rendering of table with 4 axis

4 axis mini mill

Safe electrics

Air filters to safeguard your electrics cabinet.

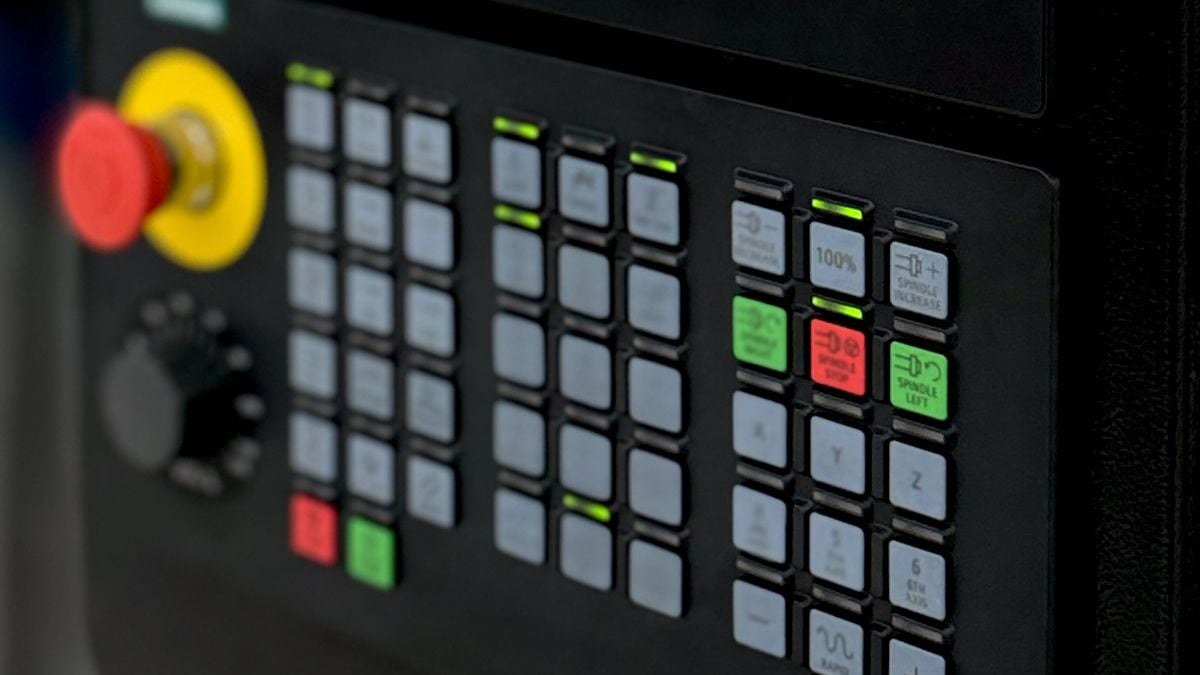

CNC control systems

Choose a LNC 6800 or Syntec 22ma controller

Epoxy granite body

Vibration absorbing casting

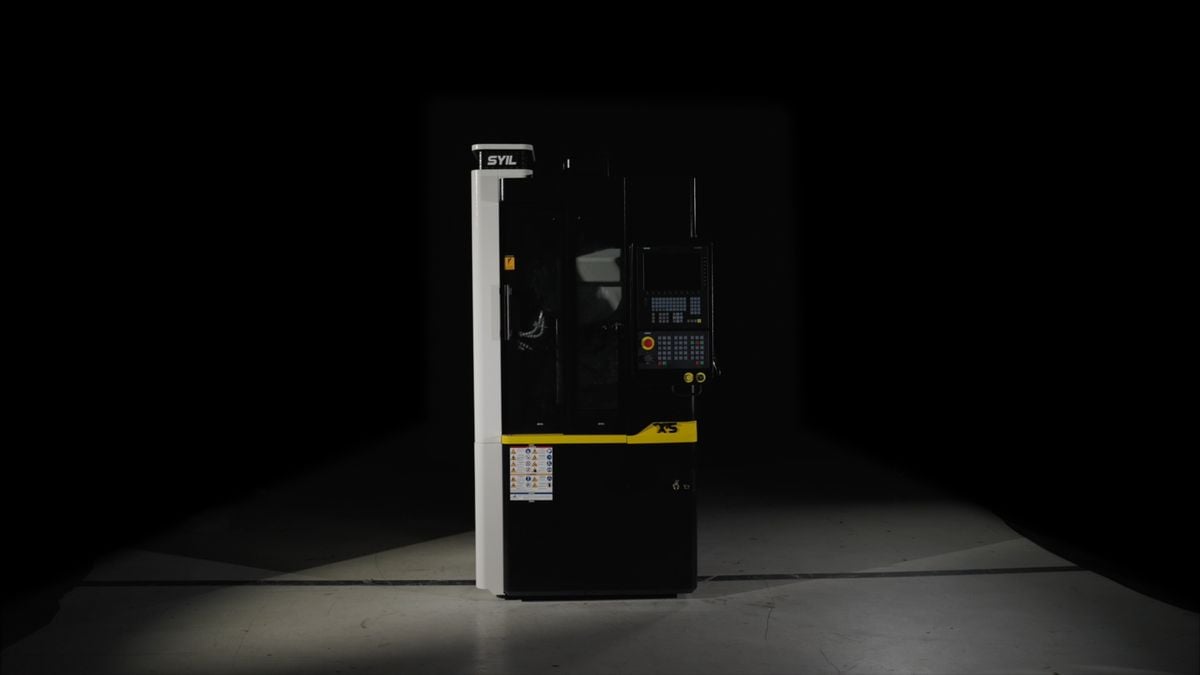

Space saving design

Ideal 1m x 2.1m foot print

syil x5 hobby cnc machine

Power

Single/3-Phase

Economical

for small parts

Full-size

machine features

Full-size machine operating on multiple phases

One of the best advantages of the SYIL X5 is that it allows you to operate on single-phase and three-phase power settings. It is a proven compact machine with different operation phases and an economical solution for cutting small parts in small and large operations.

X5 Packages Specs

Travels

X / Y / Z axis (mm): 300 / 280 / 300

Spindle

Max rating (kW): 3.7

Controller

LNC 6800

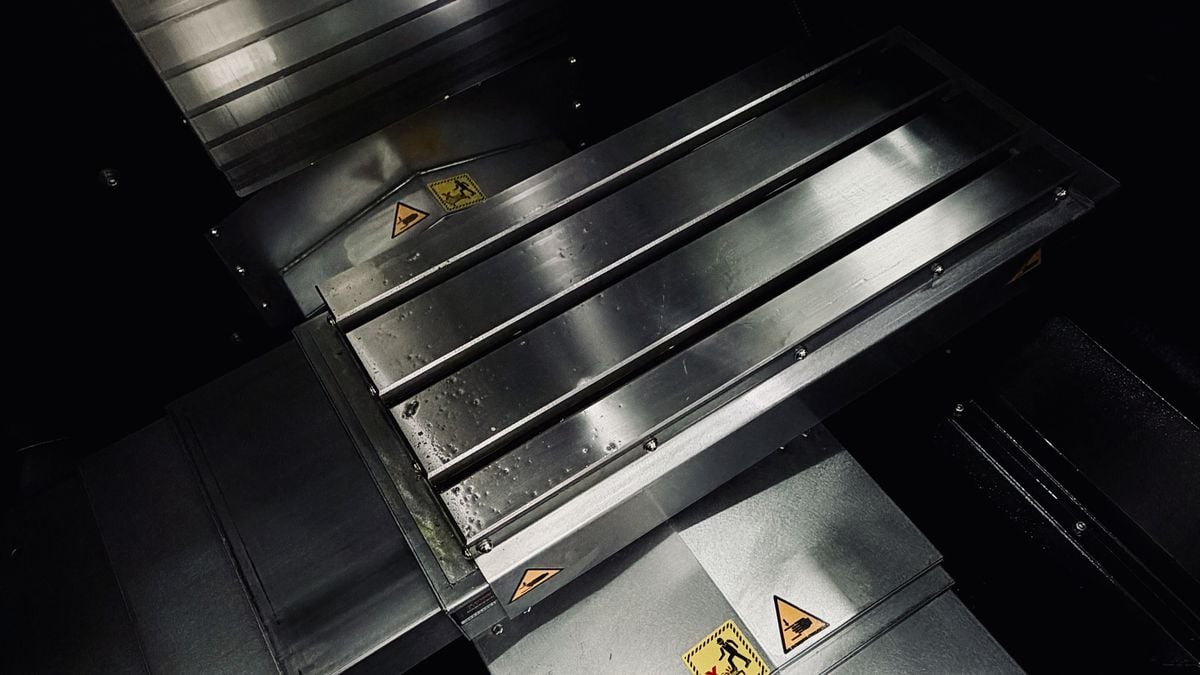

Table

Length x width (mm): 620 x 400
Max weight on table (kg): 250

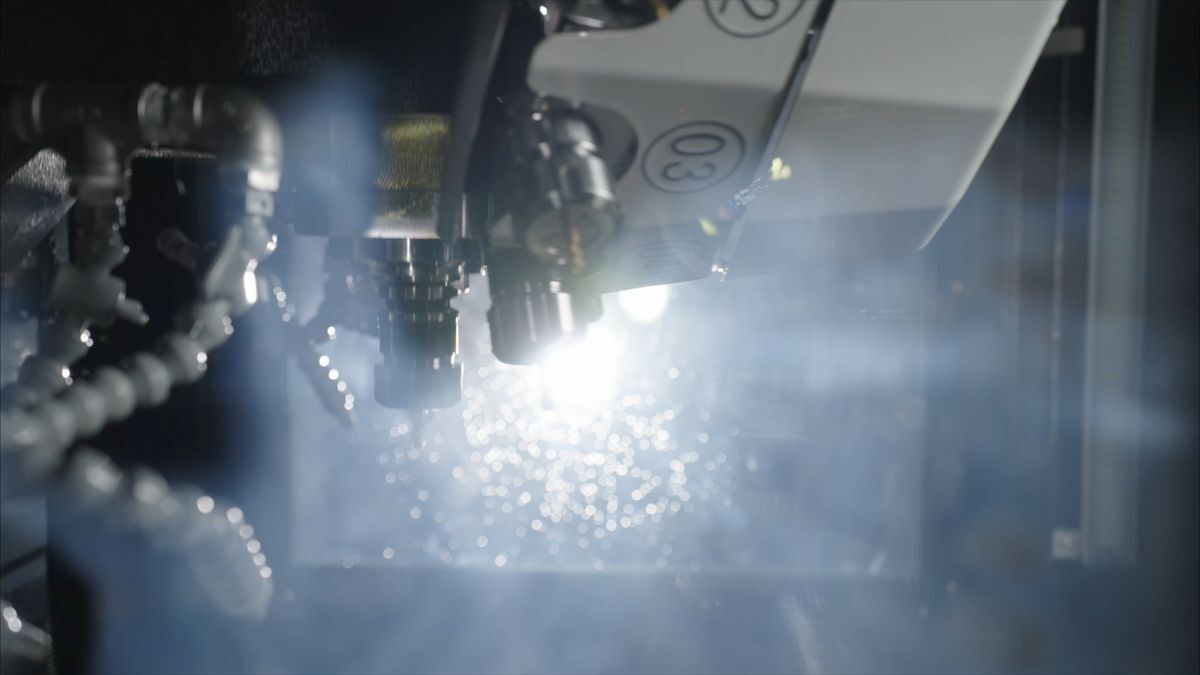

Feedrates

Max cutting: 10K mm/min | 393IPM

Tool changer

Radial Drum, 16

Dimensions

Floor space (cm): 100x210x205

Travels

X / Y / Z axis (mm): 300 / 280 / 300

Spindle

Max rating (kW): 3.7

Controller

Syntec 22MA

Table

Length x width (mm): 620 x 400
Max weight on table (kg): 250

Feedrates

Max cutting: 10K mm/min | 393IPM

Tool changer

Radial Drum, 16

Dimensions

Floor space (cm): 100x210x205

X5 Standard

Travels

X / Y / Z axis (mm): 300 / 280 / 300

Spindle

Max rating (kW): 3.7

Controller

LNC 6800

Table

Length x width (mm): 620 x 400
Max weight on table (kg): 250

Feedrates

Max cutting: 10K mm/min | 393IPM

Tool changer

Radial Drum, 16

Dimensions

Floor space (cm): 100x210x205

X5 Performance

Travels

X / Y / Z axis (mm): 300 / 280 / 300

Spindle

Max rating (kW): 3.7

Controller

Syntec 22MA

Table

Length x width (mm): 620 x 400
Max weight on table (kg): 250

Feedrates

Max cutting: 10K mm/min | 393IPM

Tool changer

Radial Drum, 16

Dimensions

Floor space (cm): 100x210x205
